¾” BSP Skin Fitting

£20.00

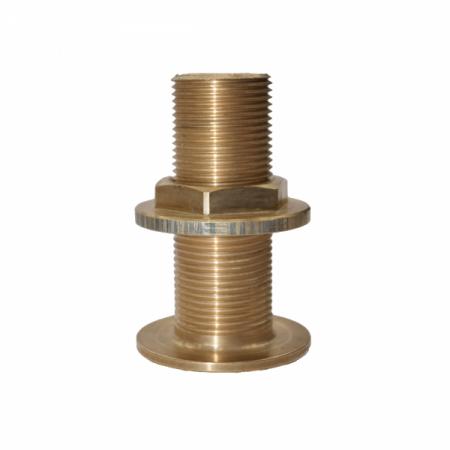

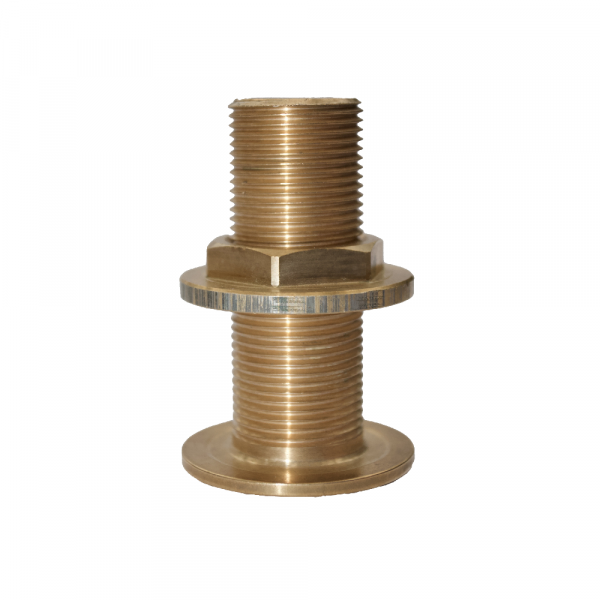

  • 3/4 ” BSP forged skin fitting
  • Forged from solid marine grade DZR alloy
  • Forged, matched metal retaining nut to secure the skin fitting to the hull.

Description

Dimensions

Length:
79mm
Diameter at flange:
47mm
Diameter at the thread:
28mm
Weight:
500g

Applications

Suitable for all through hull applications below the water line
3/4” BSP is a common size for:

  • The inlet hose of most sea toilets
  • Shaft cooling inlet hose (subject to engine specification)
  • Domestic grey water drains outlets

Materials

  • SeaSeal seacocks and fittings are forged from traceable Marine Grade
  • Dezincification Resistant (DZR) alloy.

Typically bought and used with

  • Designed to be typically used with SeaSeal DZR forged 3/4 “ BSP seacock and matched metal SeaSeal hose-tails and elbows.
  • Replacement anodes are available from www.seaseal.co.uk
  • SeaSeal skin fitting installation locking tool

Benefits and features

  • Forged from DZR brass alloy. This is matched metal to that used in the SeaSeal seacocks, fittings and accessories
  • Forged for extra strength
  • Consistent metal thickness to avoid weak points
  • Machined, smooth bore to improve flow and reduce the risk of blockages

Installation and maintenance

  • Skin fittings should be installed using marine grade sealing products and thread sealing tape or thread
  • A suitable backing pad should be placed behind the nut tightening the skin fitting to the hull. SeaSeal can supply appropriate sized GRP backing pads, please see accessories.
  • Hose tails should be attached to seacocks using a marine grade sealant and thread tape or thread
  • SeaSeal can offer an additional sealing nut, which can be used to lock a seacock to a skin fitting. These are manufactured from forged, matched DZR alloy, please see accessories section.

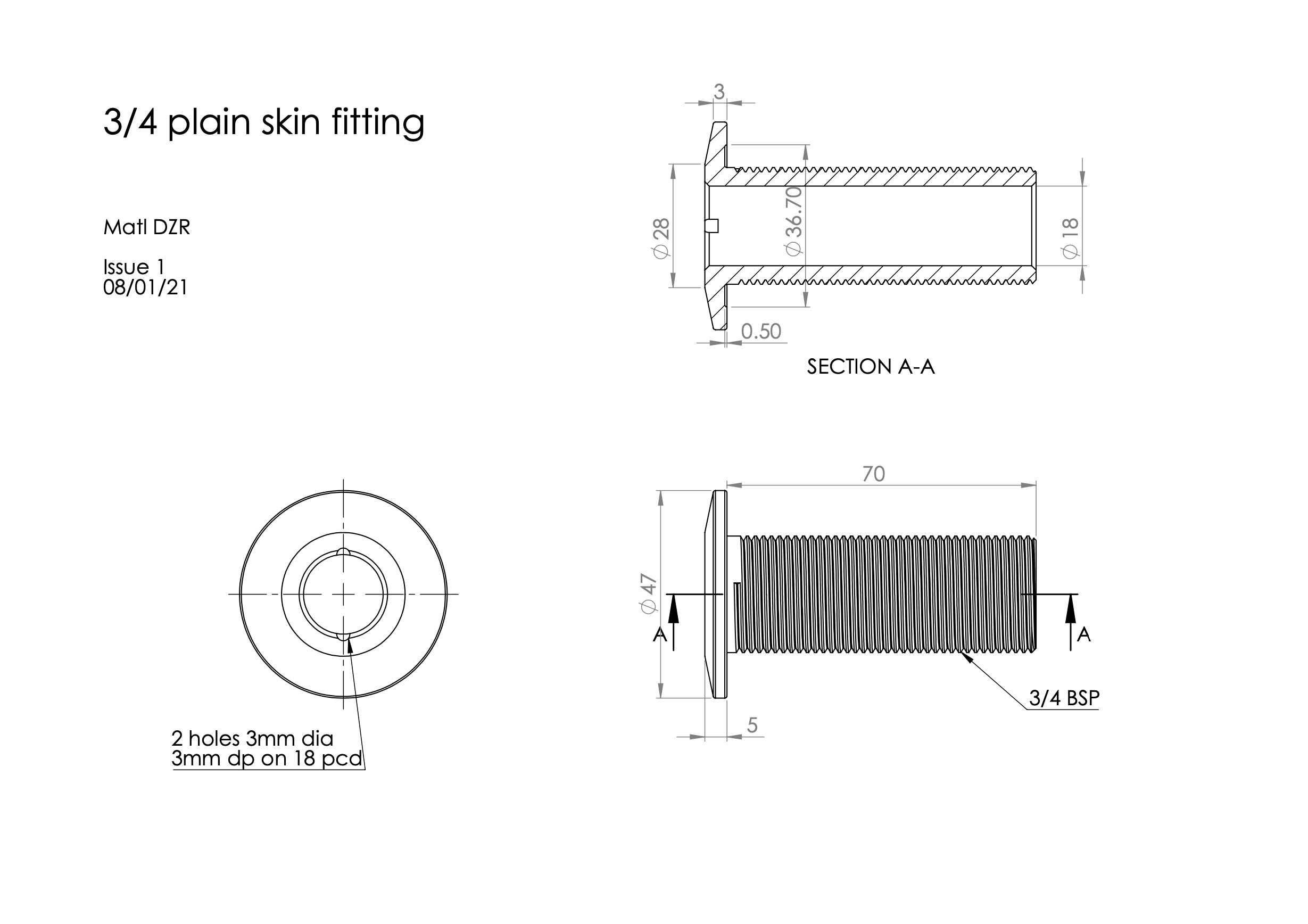

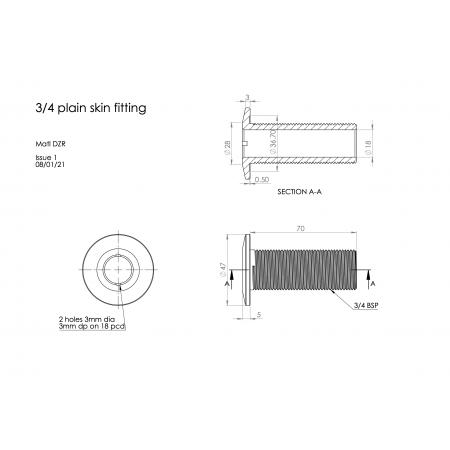

3/4 inch Skin Fitting Diagram
