1 ½” BSP Skin Fitting

£35.00

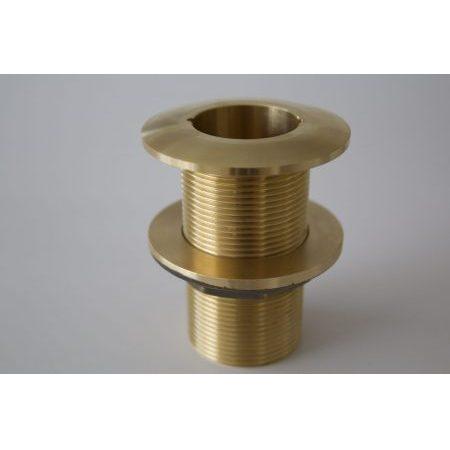

  • 1 1/2” BSP forged skin fitting
  • Forged from marine grade DZR alloy

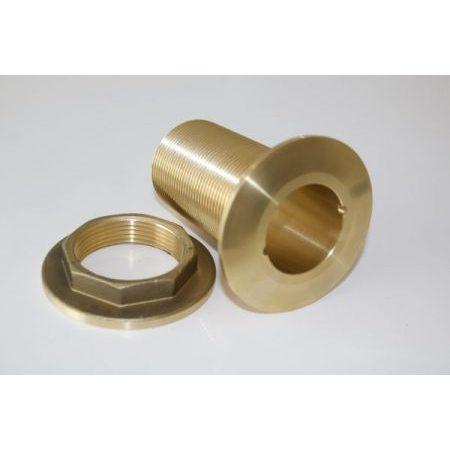

  • Match metal, forged nut to secure to the hull
  • Additional narrow flange, forged DZR retaining nuts are recommended to secure the attached seacock. These can be ordered in accessories.

Out of stock

Description

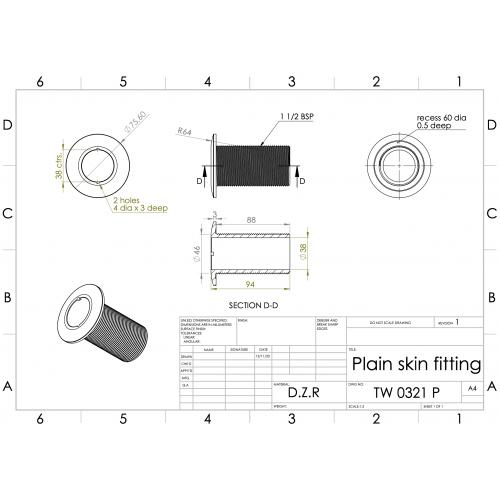

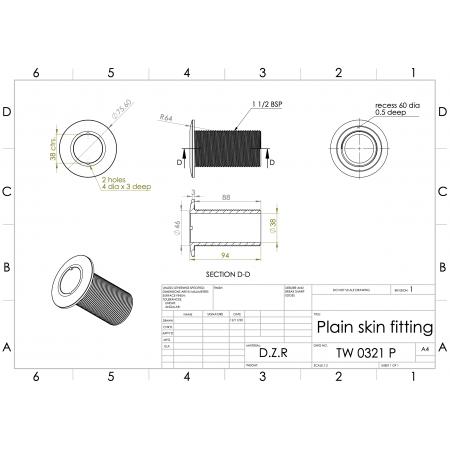

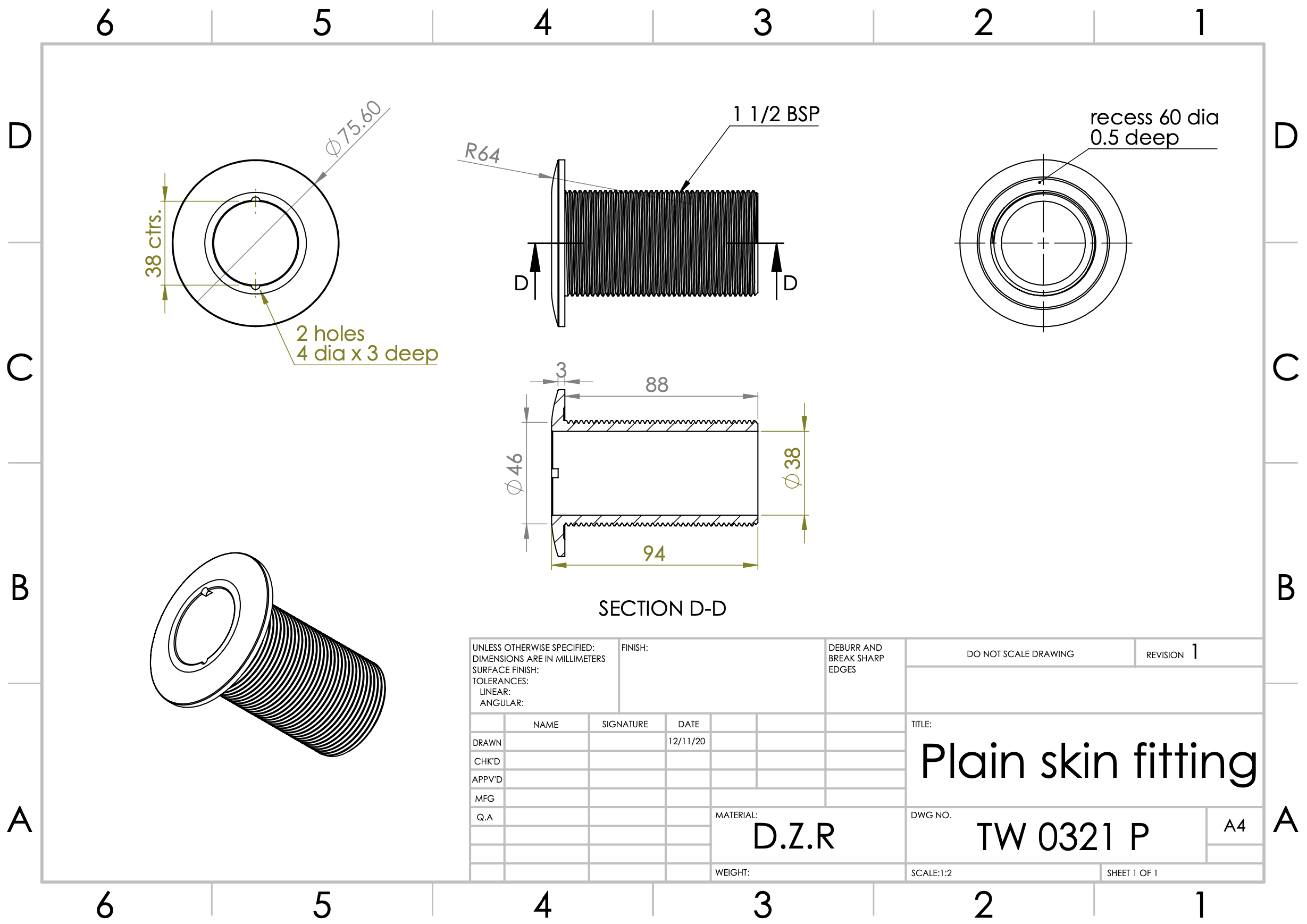

Dimensions

Length:
101mm
Diameter at flange:
75.6mm
Diameter at the thread:
50mm
Weight:
800g

Applications

Suitable for all through hull applications below the water line 1 ½” BSP is a common size for:

  • The outlet hose of most sea toilets
  • Engine inlet hose (subject to engine specification)
  • Cockpit drains outlets

Materials

SeaSeal seacocks and fittings are forged from traceable Marine Grade Dezincification Resistant (DZR) alloy

Typically bought and used with

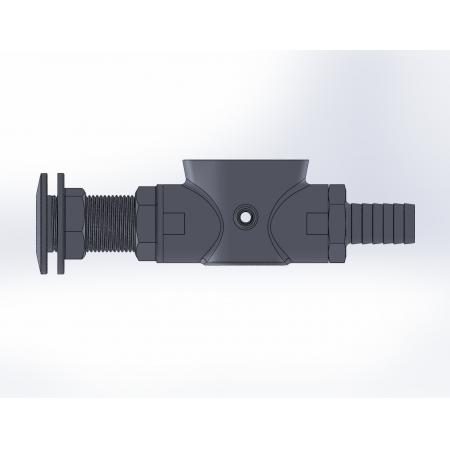

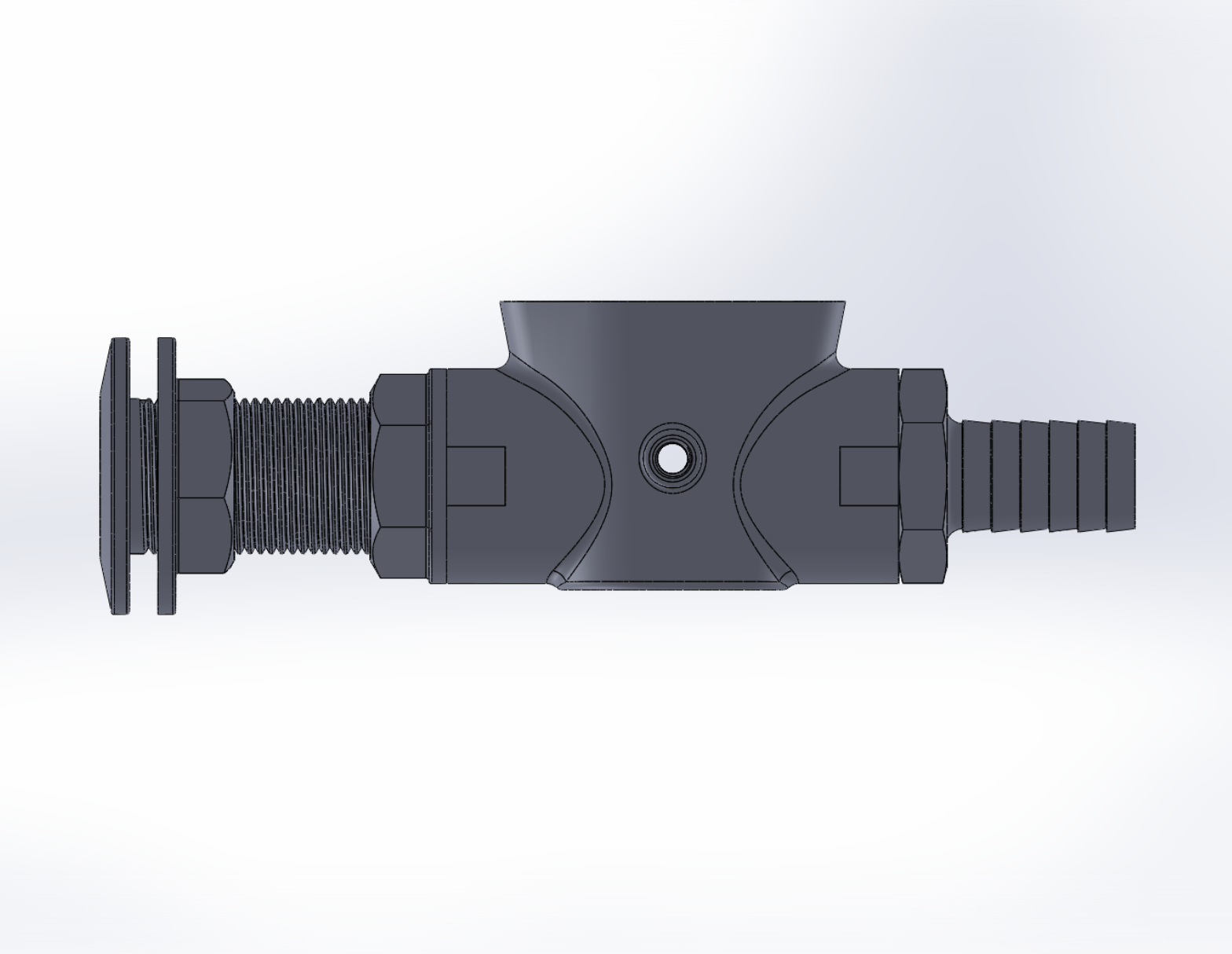

  • Designed to be typically used with SeaSeal DZR forged 1 1/2 “ BSP
  • Seacock and matched metal SeaSeal hose-tails and elbows.
  • SeaSeal skin fitting installation locking tool

Benefits and features

  • Forged from DZR brass alloy. This is matched metal to that used in the SeaSeal seacocks, fittings and accessories
  • Forged for extra strength
  • Consistent metal thickness to avoid weak points
  • Machined, smooth bore to improve flow and reduce the risk of blockages

Installation and maintenance

  • Skin fittings should be installed using marine grade sealing products and thread sealing tape or thread
  • A suitable backing pad should be placed behind the nut tightening the skin fitting to the hull. SeaSeal can supply appropriate sized GRP backing pads, please see accessories.
  • Hose tails should be attached to seacocks using a marine grade sealant and thread tape or thread
  • SeaSeal can offer an additional sealing nut, which can be used to lock a seacock to a skin fitting. These are manufactured from forged, matched DZR alloy, please see accessories section.
